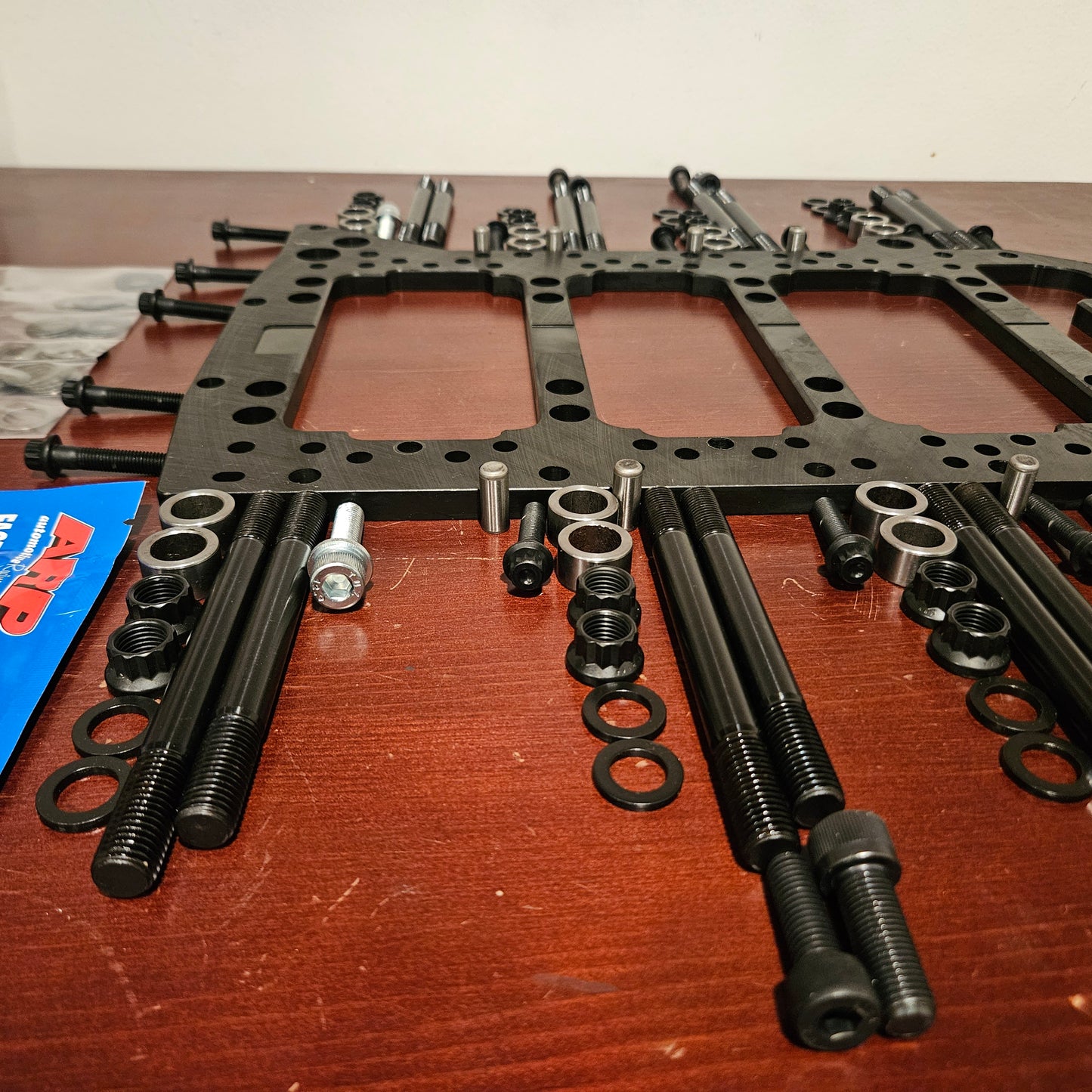

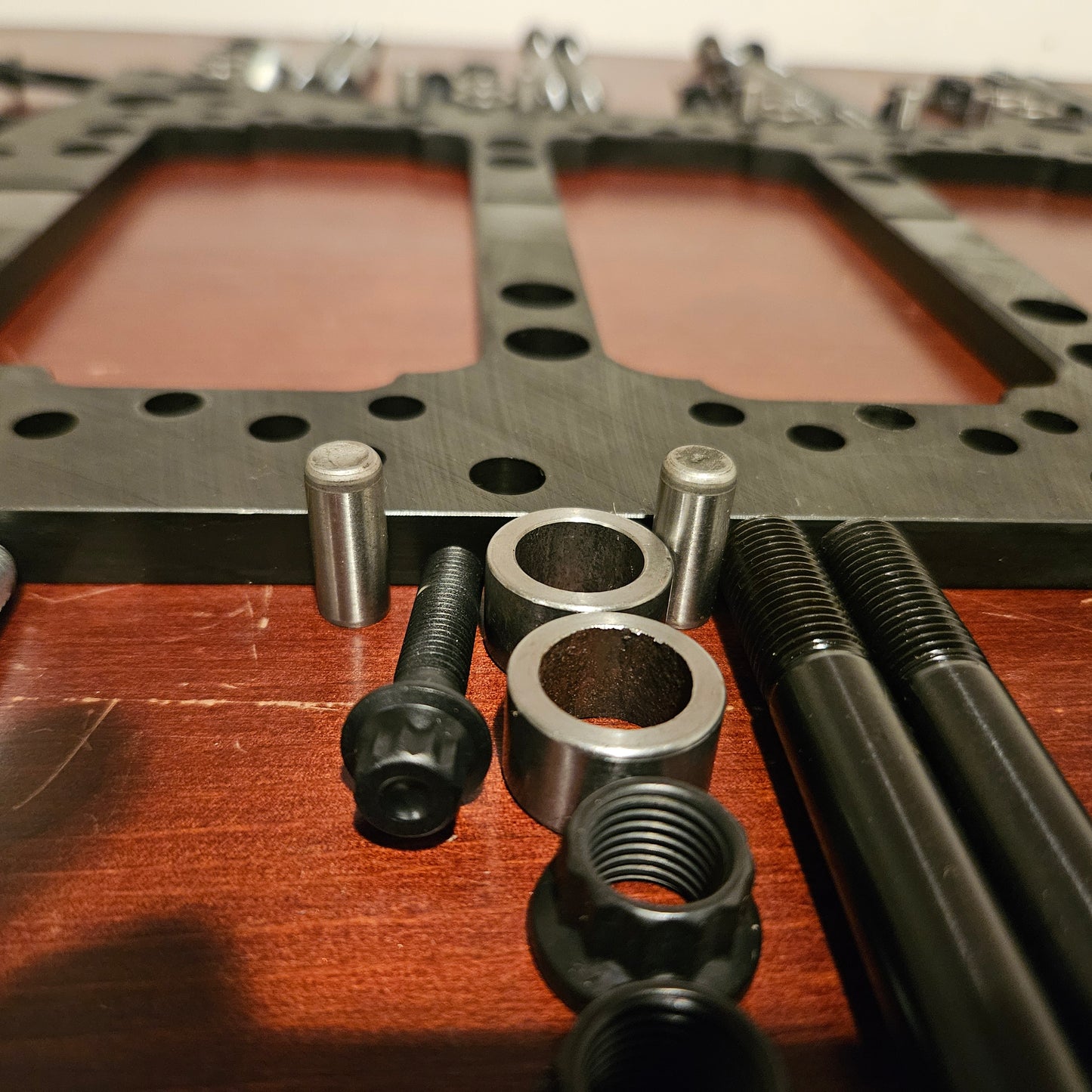

Torque-Factory Engine Bedplate/Girdle Kit

Torque-Factory Engine Bedplate/Girdle Kit

$1,495.00 USD
$1,495.00 USD $1,495.00 USD
Sale Sold out
  • Complete block reinforcement kit for APB, BEL, AE, BF 2.7t Audi V6 engines.

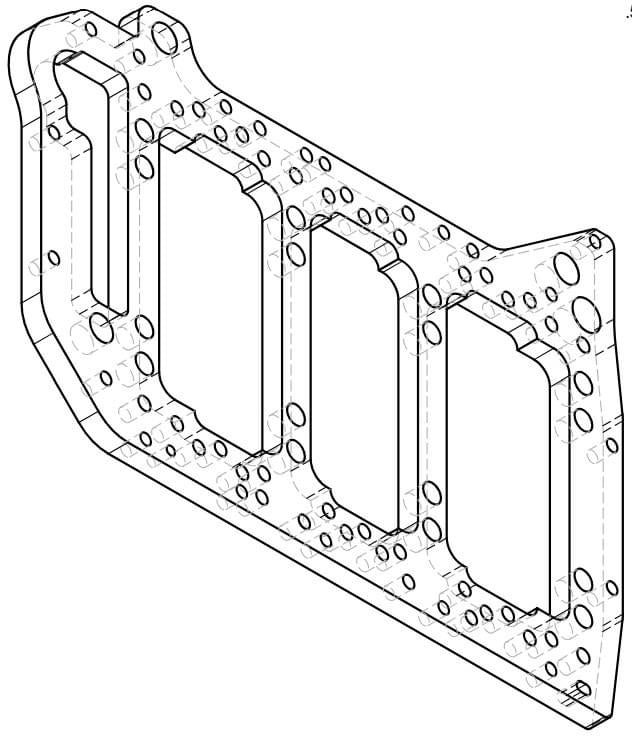

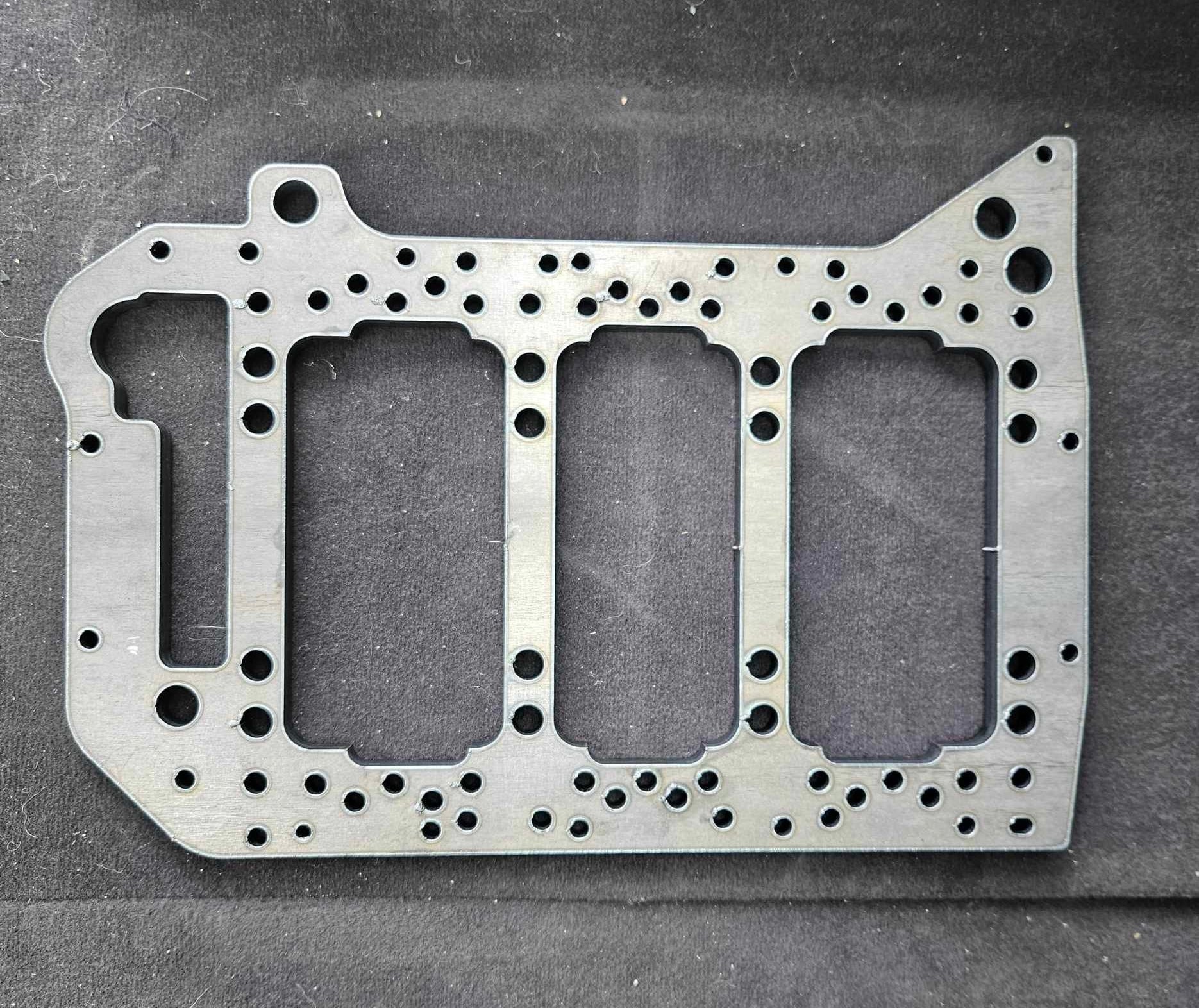

  • Electroplated steel girdle, laser cut, then CNC machined, and final surfacing to ensure no warpage and completely flat.  Anodized aluminum oil pump tube spacer

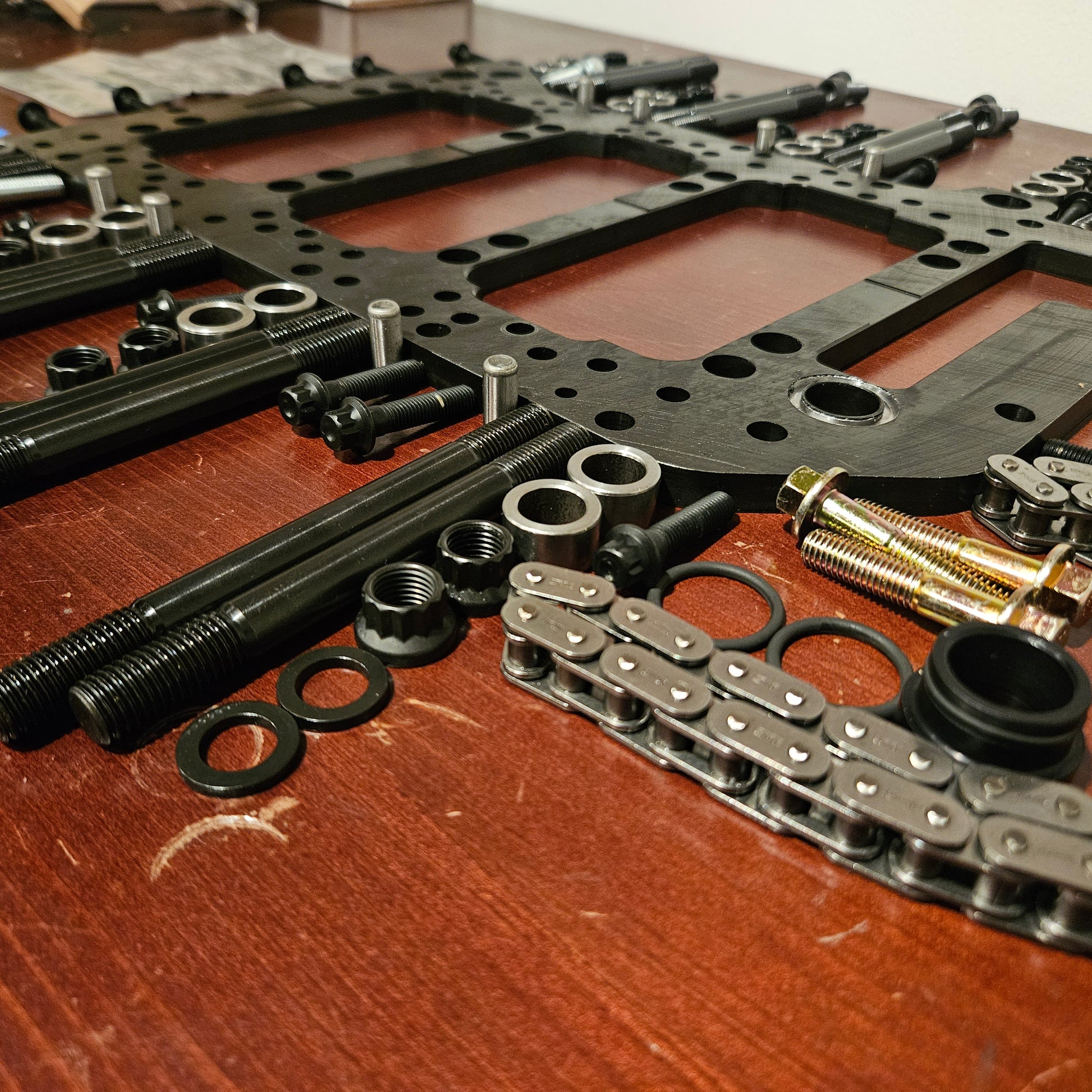

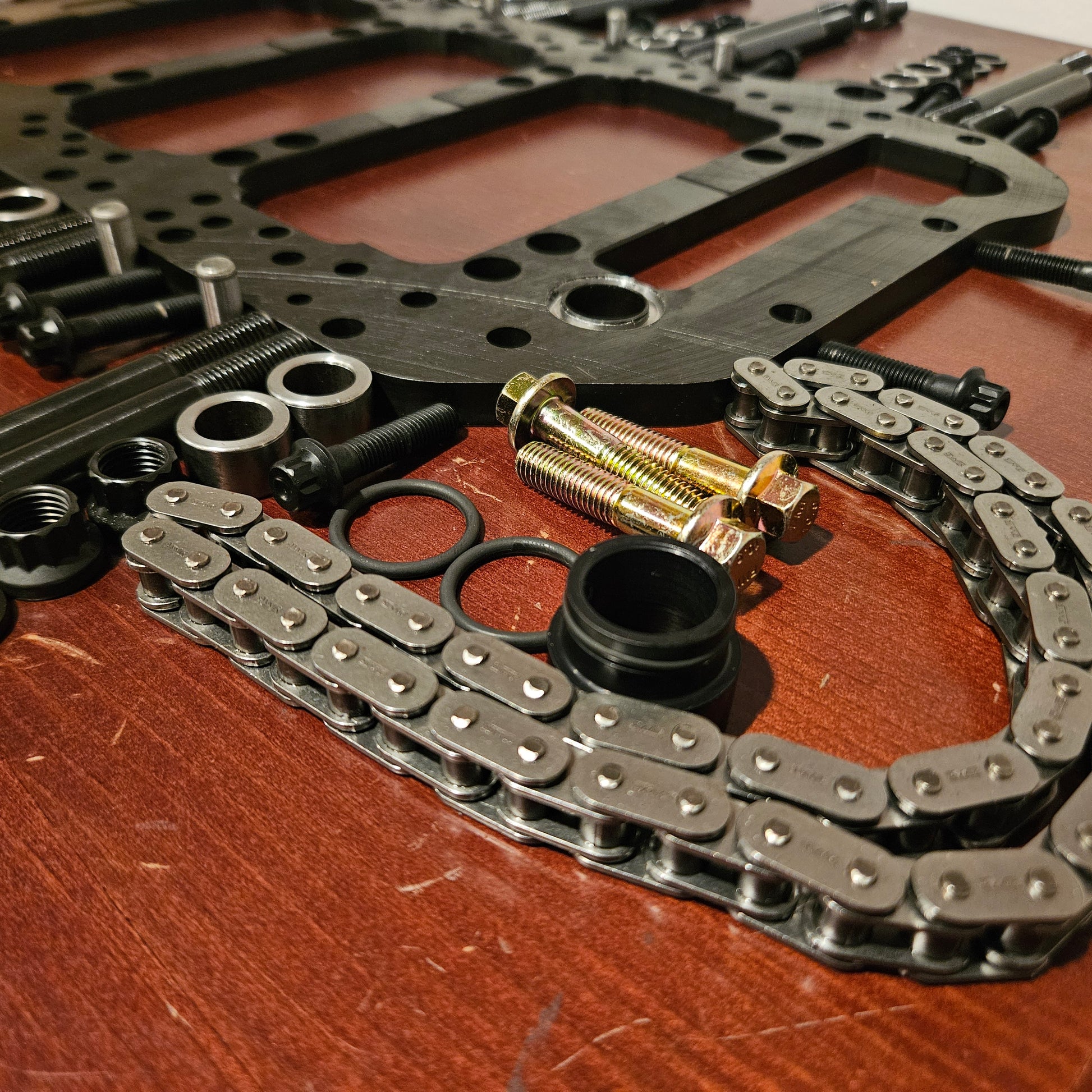

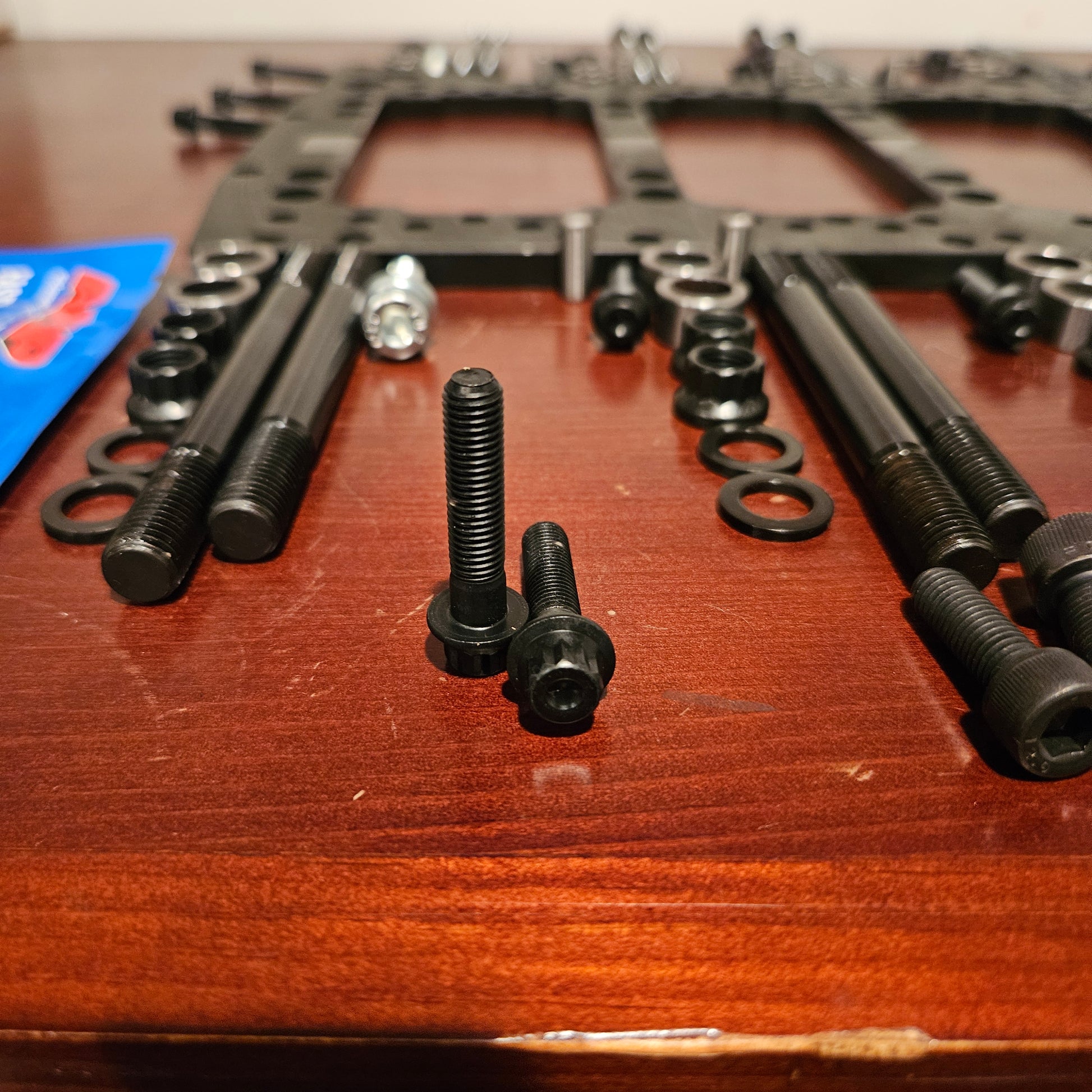

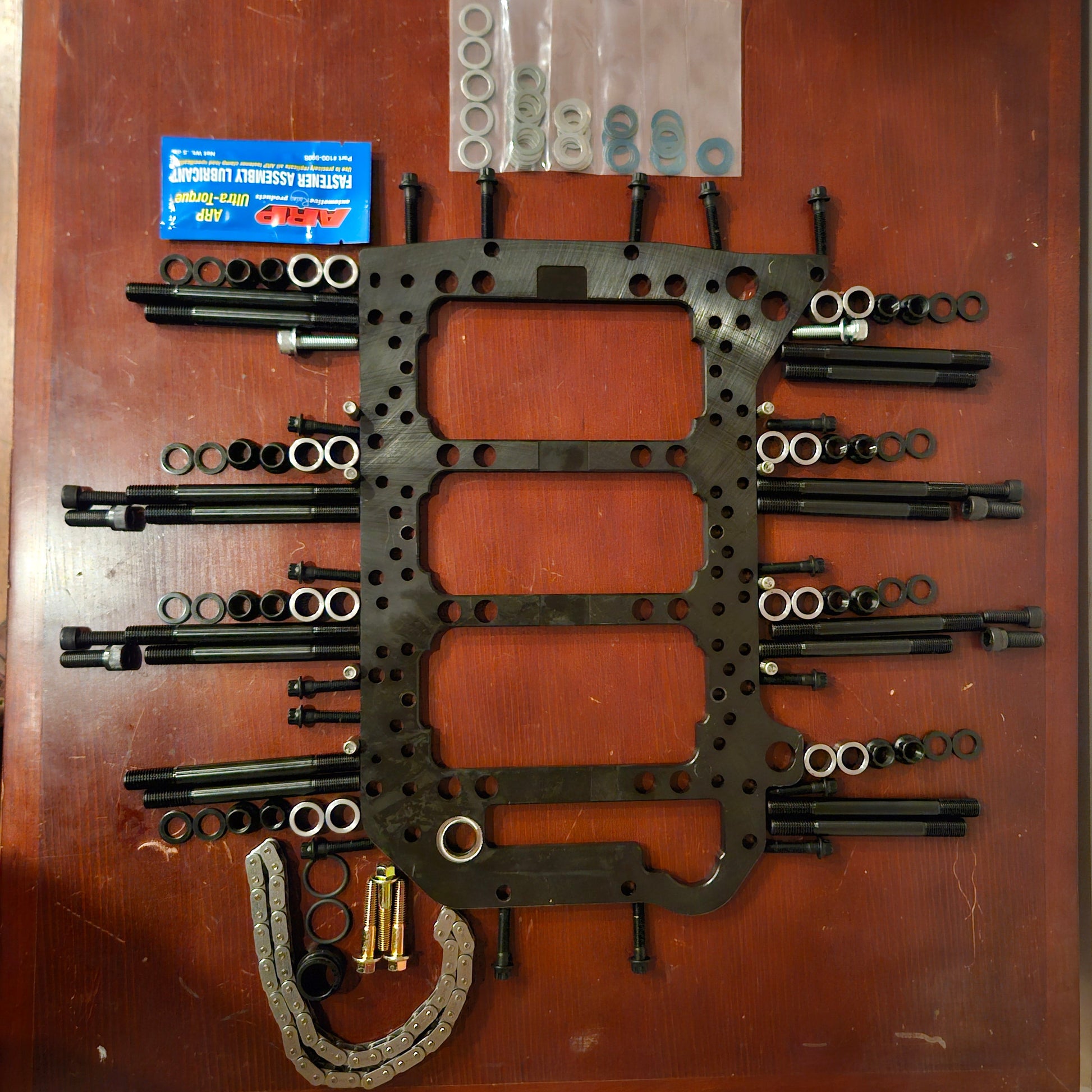

  • Includes: ARP main stud hardware, strengthened upper oil pan bolts, oil pump chain, hardened steel dowel pins, main cap spacers, oil pump tube spacer, all hardware and O-rings necessary for installation.

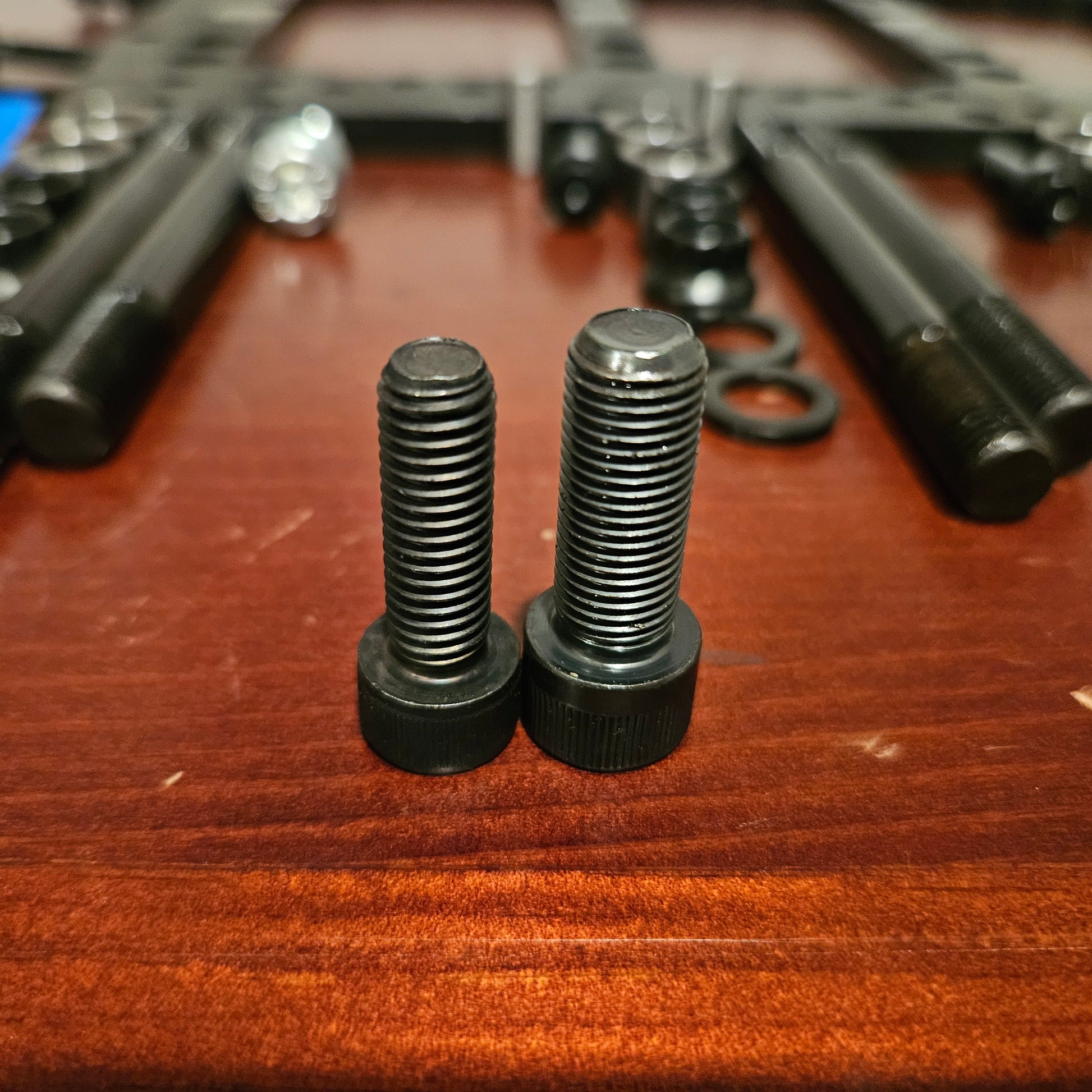

  • Includes larger, upgraded cross bolts for the middle main caps.
  • Made, and machined in the USA from our local partners.
  • Requires simple work by a capable engine machinist. Drill and hone 8 small holes for reinforcement pins into skirts of the block. Drill and tap 4 holes for the larger cross bolts.
  • Lowers oil pan by 10mm (.375")
  • Trimming of upper oil pan and oil pump is required.
  • Does not fit AZR (RS4) blocks.
